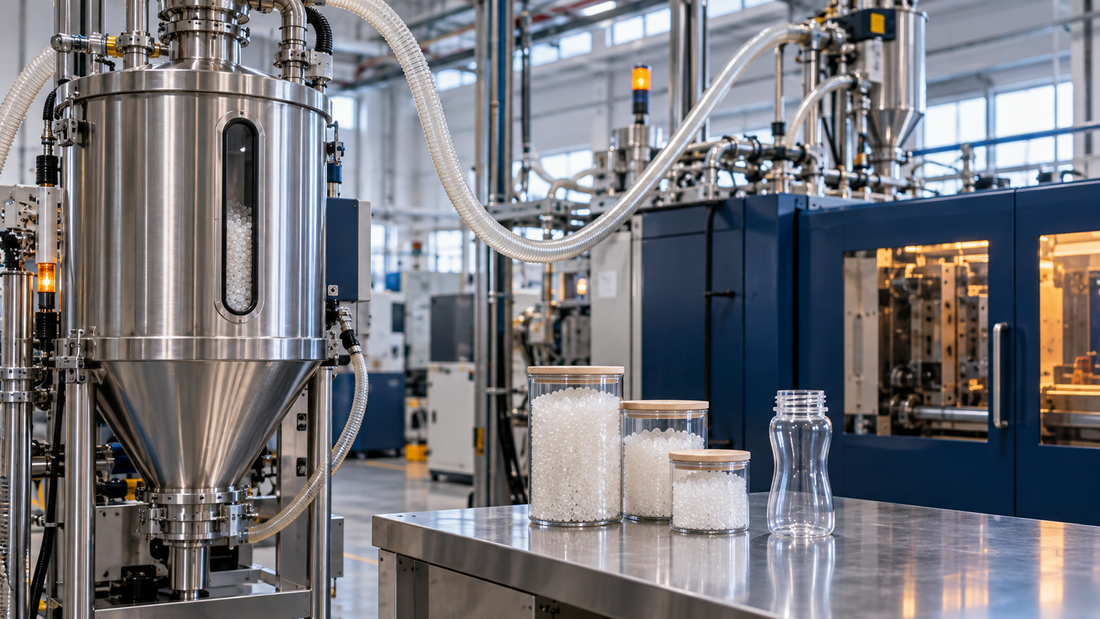

A dryer setpoint can look correct while the resin entering an injection molding machine is still too wet, unevenly heated, or already exposed again to humid air. For transparent baby bottle bodies and other feeding components, that gap can show up as streaks, bubbles, color shift, unstable dimensions, or a loss of material performance that appearance checks alone may not reveal.
Drying is therefore not a single machine setting. It is a controlled material state created by the resin-specific recipe, the dryer and hopper, the time each pellet actually spends in dry air, the transfer route, and the way interruptions are handled. A brand approving an OEM/ODM process should ask for evidence at the point of use, not only a screenshot of the dryer panel.
This guide explains how product developers, sourcing teams, and factories can specify and verify resin drying for injection-molded bottle bodies, cups, lids, collars, and handles. It uses supplier data as examples, not as universal settings for every polymer or grade.
Dry resin is a material state, not a machine setting
Many engineering thermoplastics absorb moisture from the surrounding air. During high-temperature processing, that moisture can affect how the polymer behaves. ASTM's current D6869-25 moisture test page notes that excessive moisture can cause surface imperfections such as splay or bubbling and can contribute to hydrolytic degradation. The business risk is that a part may look acceptable under one lighting condition while its process history is already outside the approved material window.
It is useful to separate three questions. Is the dryer producing sufficiently dry air? Have the pellets received the required temperature and residence time? Is the resin moisture at the point of molding within the limit for the approved grade? A good answer to one question does not automatically prove the other two. Dew point describes the drying air, while pellet moisture describes the material itself.
The factory should also distinguish resin water content from the water absorption of a finished part. ISO 15512:2019 covers methods for determining water content in plastic powder, granules, and finished articles, while explicitly separating that measurement from water-absorption testing under ISO 62. For a molding control plan, the chosen moisture method, sample location, detection capability, and acceptance limit should match the resin supplier's requirement.
Visual defects remain useful signals, but they are late and incomplete signals. The release system should connect dryer performance and material measurements with part appearance, color, dimensions, assembly, and any product-specific functional checks.
Use a grade-specific recipe instead of a universal number
There is no responsible “baby bottle resin drying temperature.” PP, copolyesters, PPSU, and other thermoplastics have different moisture behavior and processing windows. Even grades within one family can differ because of viscosity, additives, color packages, delivery form, and supplier instructions. The controlled document must name the manufacturer and grade, not only a broad resin abbreviation.
For example, Eastman's Tritan injection-molding drying guide calls for a desiccant or similar dryer, provides defined air, time, temperature, and airflow guidance, and sets a pellet-moisture objective for the material covered by that document. BASF's Ultrason P 3010 processing data sheet gives a different, higher drying-temperature range for that PPSU grade and warns that the pellets absorb moisture rapidly.
Those documents demonstrate why copying a setting from another material can damage rather than protect production. The table below is a sourcing comparison, not a substitute for the latest data sheet.
| Control question | Evidence to approve |
|---|---|
| Which resin is running? | Manufacturer, exact grade, color or additive package, and current supplier document |
| What creates the dry condition? | Approved dryer type plus grade-specific temperature, time, airflow, and dew-point requirements |
| What proves readiness? | Defined moisture limit and a measurement method capable of resolving it |
Revision control matters. When the resin grade, supplier, masterbatch carrier, regrind policy, dryer, hopper size, or transfer layout changes, reopen the drying validation. A purchase specification that says only “dry material before molding” is too weak to govern those changes.
Control the route from package to feed throat
Drying can be undone after the cycle finishes. Pellets left in an open bag, uncovered cart, unsealed day bin, long transfer hose, or warm humid room can take up moisture before reaching the machine. The process map should therefore start at receiving and storage, then follow material through package opening, screening or blending, drying, transfer, the machine hopper, and the feed throat.
Define which containers stay sealed, how partial bags are closed and identified, and whether dried material moves through a closed conveying system. If manual handling is unavoidable, specify the maximum exposed time and the disposition after that time expires. Do not invent the number locally; establish it through supplier guidance or a documented study under relevant plant humidity.
Hopper capacity and throughput must agree. A nominal four-hour recipe does not mean every pellet receives four hours if fresh resin shortcuts through the hopper, production demand exceeds dryer capacity, or the hopper is repeatedly topped up without a known residence boundary. Review usable hopper volume, actual consumption per hour, loading pattern, level control, and temperature profile. Start the residence-time clock only after the material has reached the specified condition.
The drying boundary should cover every step from opened packaging to the molding-machine feed throat.
Line clearance protects both dryness and identity. Residual PP, color concentrate, cleaning material, or a different sulfone grade can contaminate a high-temperature resin even when moisture control is perfect. Dedicated or verified-clean bins, hoses, loaders, hoppers, and feed paths should be part of the changeover record.
Measure moisture with a fit-for-purpose method
A dryer display is process data; it is not a direct pellet-moisture result. Product teams should decide where a resin sample is taken, when it is taken, how exposure during sampling is limited, and which instrument method is used. Sampling at receiving answers a different question from sampling at the dryer outlet or machine hopper.
ISO 15512 describes several approaches, including extraction and vaporization methods linked to Karl Fischer determination, as well as other techniques for suitable plastics and moisture ranges. ASTM D6869-25 covers coulometric and volumetric Karl Fischer determination for plastics and notes that volatile components may interfere. The factory does not need every method; it needs one justified method whose range and interferences are suitable for the approved material and limit.
A loss-on-drying moisture analyzer can be useful for fast production checks only when its result is correlated to the reference method for the exact resin, sample mass, heating program, and expected range. A generic shortcut may measure other volatiles, stop too early, or lack resolution near a tight moisture limit. Record the method version, instrument ID, calibration or verification status, sample preparation, and result.
Sampling and measurement should preserve the resin condition the factory intends to verify.
Trend data is more informative than an isolated pass. Relate moisture results to dryer dew point, inlet and return-air temperature, airflow or maintenance indicators, hopper loading, material lot, machine, mold, time, and part findings. A trend drifting toward the limit can trigger investigation before defects reach a shipment.
Validate starts, stops, and humid-day production
A drying plan should be challenged under the conditions that disrupt normal flow. Include initial startup from packaged resin, a normal refill, a brief machine stop, an extended interruption, a material or color change, and end-of-shift handling. Define what stays in the dryer, what can remain in the hopper or transfer line, what must be re-dried, and what must be quarantined.
Supplier guidance belongs in those decisions. BASF's broader Ultrason processing brochure discusses rapid moisture uptake, drying equipment, contamination between polymers, and startup or shutdown handling. Eastman's guide likewise connects drying with consistent molding performance. Convert the applicable supplier instructions into site-specific work instructions rather than relying on operator memory.
Seasonal humidity can expose a weak transfer route even when the dryer itself performs consistently. During validation, record the room condition and include a credible high-humidity case for the site. Check material at defined locations and times, then mold enough parts to review startup segregation, cavity coverage, appearance, color, dimensions, and the assembled functions that matter to the product.
Restart samples should remain identified and quarantined until the agreed release evidence is complete.
An alarm needs a disposition rule. A dew-point excursion, heater fault, empty hopper, open lid, loader failure, or unknown exposure period should define an affected time window and material quantity. The response may involve holding pellets and molded parts, re-drying where the supplier permits it, taking a moisture sample, purging, or restarting validation. Record the decision and its authority.
Approve a drying system with production evidence
Before tooling approval or pilot production, include drying requirements in the material and process specification. At minimum, identify the resin manufacturer and grade, packaging and storage rules, approved dryer type, recipe source and revision, hopper and throughput assumptions, closed-transfer boundary, moisture limit and method, sampling points, exposure limit, alarms, interruption response, re-dry policy, and records retained with the finished lot.
During the supplier audit or trial, follow one material lot through the actual route. Compare the written flow with what operators do, inspect seals and transfer connections, confirm that dryer capacity matches consumption, and review how a partial bag and interrupted run are identified. Ask for raw observations, not only a selected group of clear bottles.
Acceptance should link material evidence to product evidence without claiming that drying alone proves compliance or safety. The approved food-contact grade, declarations, formulation controls, molding process, dimensional and functional tests, and destination-market requirements still operate together. Drying protects the intended polymer condition; it does not replace the rest of the quality system.
