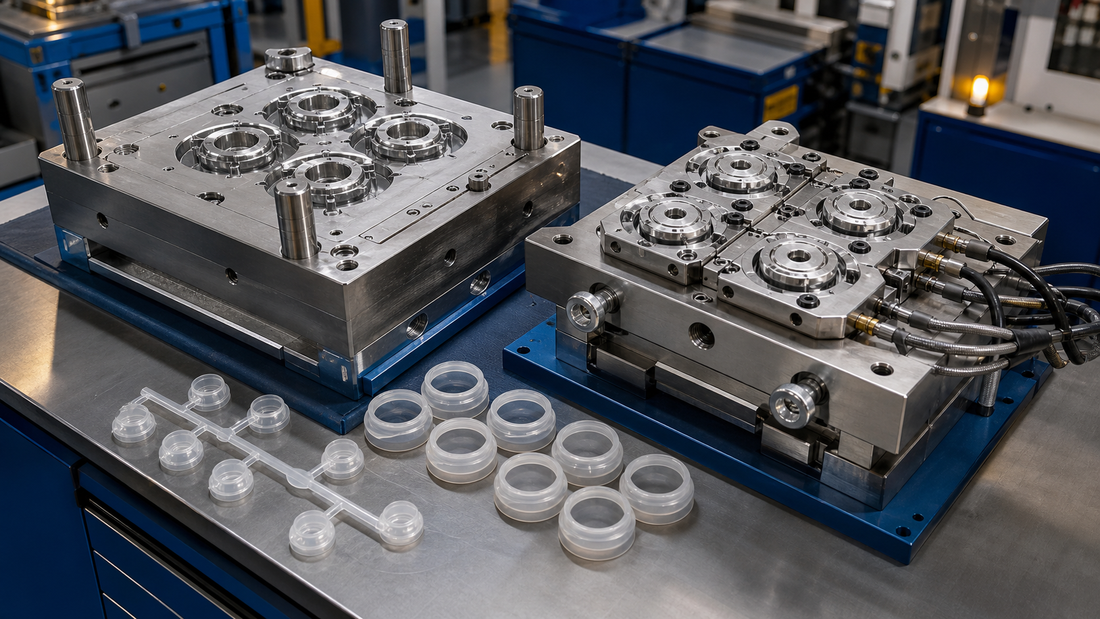

A tooling quotation may describe a mold as hot runner or cold runner as if that single choice predicts cost, quality, and efficiency. It does not. For a baby feeding product, the runner system sits between the molding machine and every cavity, so it affects the resin's thermal history, gate appearance, cavity balance, changeover work, maintenance, and the evidence needed for release.
A hot runner can reduce the solid sprue and runner ejected on each cycle. A cold runner can provide a simpler, visible flow path and a clean break between shots. Either system can produce capable parts when it is designed for the actual resin, geometry, volume, color plan, and factory controls. Either can also create recurring defects when it is selected as a generic upgrade or cost-saving shortcut.
This guide explains the questions a brand, product developer, and OEM/ODM factory should settle before approving runner architecture for bottle collars, caps, cups, handles, lids, and other injection-molded feeding components. It is a sourcing and manufacturing-control guide, not a universal mold specification.
Start with the resin and product program
Runner selection should follow the approved material grade, not precede it. PP, copolyester, PPSU, and other thermoplastics have different processing windows, viscosity, moisture sensitivity, and tolerance for time at melt temperature. A concept that works for a high-volume PP cap may be unsuitable for a transparent engineering-resin bottle or a low-volume launch with frequent color changes.
The material supplier's current processing guide is the first technical reference. Eastman's Tritan copolyester processing guide, for example, gives separate cold-runner and hot-runner construction guidance and calls for balanced flow plus controlled temperatures through the machine nozzle, manifold, drops, tips, gate area, and cooled mold. Those details show why “hot runner” is not a complete design description.
For high-temperature sulfone polymers, the decision needs even more care. Syensqo's PPSU, PSU, and PESU processing guide warns that stagnant melt, excessive residence time, restrictions, and poor temperature control in a hot runner can contribute to discoloration or degradation. The correct conclusion is not that every PPSU tool must be cold runner. It is that the toolmaker must demonstrate a resin-appropriate flow path and control strategy.
Before quoting, freeze the resin manufacturer, grade, permitted colors or masterbatch, forecast lot size, cavity count, expected cycle pattern, and approved product surfaces. If inputs remain open, require a comparison with stated assumptions.
Understand what stays molten and what leaves the mold
In a conventional cold-runner mold, resin flows through a sprue and runner that cool with the molded parts. The tool then ejects that solid feed system, which must be separated, identified, and either disposed of or handled under an approved regrind route. Two-plate and three-plate layouts provide different options for gate location and automatic separation, but both create solid runner material.
A hot-runner mold replaces much of that solid feed path with a heated manifold and drops that keep resin molten between cycles. The cavities cool and eject their parts while resin remains inside the runner system. Thermal gates and valve gates control how the melt enters each cavity. The architecture can reduce runner scrap and secondary degating, but it adds heaters, sensors, seals, tips, controls, and internal melt volume that the factory must manage.
Ask the supplier to show a section view, not only a mold-base rendering. Identify the nozzle interface, manifold channels, every drop and gate, heater and thermocouple locations, gate cooling, service access, and retained melt. For a cold-runner proposal, review the sprue, branch balance, cold-slug control, gate removal, ejection, and runner-to-part weight ratio.
A runner-system review should show the complete path from the machine nozzle to every cavity.
Compare material efficiency with melt-history risk
Material efficiency is important, especially when the runner is large relative to the component or the approved resin is expensive. Yet a “zero runner waste” claim is incomplete. Start-up parts, purging material, color-change scrap, interrupted-cycle material, rejected components, and maintenance losses still belong in the commercial model. The correct comparison uses acceptable parts per kilogram and per production hour, not only runner weight on a stable cycle.
A cold runner creates visible material every shot, but it also establishes a more obvious boundary between cycles. If regrind is proposed, the brand should approve the exact resin grade, source, maximum proportion, number of heat histories, segregation, contamination controls, and product or market restrictions. A percentage copied from a generic guide is not automatically acceptable for a food-contact baby product.
A hot runner keeps melt in the tool, so residence time and shutdown response become design inputs. Estimate retained volume against shot size and realistic cycle interruptions. Define what happens after a brief stop, alarm, tool adjustment, power loss, weekend shutdown, or extended restart. Eastman's guide includes material-specific purging and shutdown advice and cautions against leaving polymer sitting at temperature. The factory procedure must use the approved supplier guidance for the exact grade rather than a universal timer.
Commercial evaluation should include tool price, controls and spares, cycle time, degating labor, material yield, maintenance, downtime, changeover scrap, and repair capability. A hot runner may earn its cost in a stable high-volume program; a cold runner may suit prototypes, short campaigns, frequent changes, or limited local service. Require the assumptions in writing.
Design gates and balance around the finished function
The gate is not just the point where plastic enters. Its location and type influence fill pattern, weld lines, packing, shrinkage, warpage, local stress, appearance, and how the part separates from the feed system. For a bottle collar or cap, those effects can reach threads, sealing faces, snap features, hinge areas, decoration zones, and surfaces touched during use.
Define protected functional and cosmetic zones on the drawing before the mold supplier places gates. Agree the permitted vestige, trimming method, witness mark, and inspection boundary. A valve gate can improve gate control for some parts, but it still needs correct alignment, temperature, timing, and maintenance. A small gate chosen for appearance can create high shear or restrict packing; a larger gate in the wrong place can disturb function or require secondary finishing.
Multi-cavity tools need balanced delivery to every cavity. The Syensqo guide describes equal flow length and simultaneous filling as important to consistent molding and warns that family molds containing different part shapes can be difficult to balance. For a baby feeding set, molding a cap and handle in one family tool may look economical in a quotation but should be supported by fill analysis and physical trial data for both components.
Review short-shot studies, fill sequence, pressure data where available, gate-seal behavior, cavity-to-cavity dimensions, part weight, appearance, and function. Use the assembled product in validation: a visually acceptable collar is not sufficient if gate-related variation changes sealing compression or assembly torque.
Gate and cavity balance should be judged against functional interfaces, not appearance alone.
Plan color changes, regrind, and lot boundaries
A runner system also shapes daily production logistics. Ask how the factory moves from one resin, color, or approved masterbatch to the next. Hot-runner dead spots can extend a color transition, while cold runners produce a visible stream that is easier to segregate but may generate more material. In both cases, the changeover plan should state the purge material, sequence, acceptance check, start-up quarantine, and release authority.
Do not allow purge, runner, or rejected-part material to become an unidentified common regrind stream. The batch record should connect virgin resin, approved additives, permitted regrind, dryer or handling status, machine, mold, cavities, production time, and finished lot. If the brand prohibits regrind for a specific component, market, color, or launch stage, that boundary belongs in the purchase specification and work instruction.
For products intended for food contact in the EU, Commission Regulation (EC) No 2023/2006 on good manufacturing practice requires organized, documented quality assurance and quality control arrangements for applicable materials and articles. Runner architecture does not prove compliance; it must operate inside the approved material specification, process documentation, and change-control system for the destination market.
Define lot boundaries around meaningful changes. A heater replacement, manifold repair, gate-tip change, new masterbatch batch, resin transition, or altered regrind route may require segregation. Retain start-up evidence so later signals can be traced to the event.
Changeover and maintenance controls protect material identity across production lots.
Approve the tool with production evidence
A mold purchase specification should make the runner system auditable. Include approved resin grades, cavity layout, gate type and location, controller requirements, heater and sensor zoning, temperature-alarm strategy, water circuits, expected cycle and shot size, retained melt estimate, permitted regrind, changeover method, maintenance access, critical spares, and documentation delivered with the tool.
During trials, challenge the conditions the factory will actually face. Run every cavity, record stable-cycle data, pause and restart under an agreed scenario, complete at least one relevant material or color change, inspect start-up segregation, and verify gate appearance plus assembled function. Record parameters and deviations instead of approving only a tray of selected samples. The sample set should include cavity and time identifiers so variation is not hidden by an average.
Maintenance deserves the same attention as the first trial. Eastman's guide recommends periodic inspection of screw, check-valve, and nozzle assemblies for wear and locations where material can collect and degrade. A hot-runner project should extend that thinking to supplier-defined manifold, drop, tip, seal, heater, thermocouple, cable, and controller checks. Confirm who can perform each task, what spares are stocked, and whether the tool can be serviced near the production site.
The final decision is therefore not hot versus cold in isolation. It is whether the complete resin, runner, gate, process, changeover, maintenance, and evidence package supports the product program. DoraPony can review these inputs with brand teams before tooling and convert them into a DFM and mold-approval brief. Share the target components, resin grades, colors, forecast volume, destination markets, and functional interfaces so the runner architecture is chosen for controlled production rather than a quotation label.
